BP400

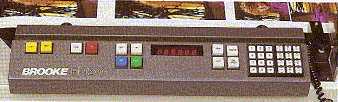

Operator-friendly console features easy to read
keypads. Digital readout shows print quality,
length of print, pickup correction and error signal.
 Pre-feed system permits fast,
trouble-free operation; automatically
controls tension on paper roll.
Pickups and pressure roller are
easily adjustable. Adjustable
pickup lets you center cut
marks between double cut.
 Cutter Blade assembly on the
BP1200 provides automatic
double Cut capability for
borderless prints.
Foot switch permits faster
hand-free operation.
Optional Fine Point Control allows
operator to compensate for
inaccurately spaced prints on
unmarked rolls.
 Compact Design: BP1200 takes
only 5.5 sq. Ft;
BP2000 only 8.3 sq. Ft.
Optional catch tray collects
prints after cutting.
SPECIFICATIONS
Brooke International
P.O. Box 300
37567 Vista Key Drive NE
Hansville, WA 98340  USA
Tel: +1 360-638-2591
Fax: +1 360-638-1658
E-mail: info@brookecutters.com
Brooke International
All rights reserved on original material
Contents Copyright © 2004 - 2006
Webmaster & Design: Debi Robinson
Purplepan Computer Service


Brooke Products
Brooke Cutters
BP1200 & BP2000

                                                                              BP1200                                 BP2000
Height                                                                                     14”                                        14”
Length                                                                                    40”                                        40”
Depth                                                                                      22”                                       22”
Weight                                                                                 100lbs.                                  113lbs.
Paper Width                                                                         2¾”-12”                                3½”-20”
Paper Length                                                                     575 ft. Roll                             575 ft. Roll
Power Requirements                                                    120v, 60Hz, 500w                 120v, 60Hz, 500w
